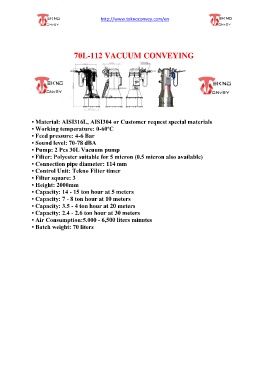

70L-112 VACUUM CONVEYING

• Material: AISI316L, AISI304 or Customer request special materials
• Working temperature: 0-60ºC
• Feed pressure: 4-6 Bar
• Sound level: 70-78 dBA
• Pump: 2 Pcs 30L Vacuum pump
• Filter: Polyester suitable for 5 micron (0.5 micron also available)
• Connection pipe diameter: 114 mm
• Control Unit: Tekno Filter timer
• Filter square: 3
• Height: 2000mm
• Capacity: 14 - 15 ton hour at 5 meters
• Capacity: 7 - 8 ton hour at 10 meters
• Capacity: 3.5 - 4 ton hour at 20 meters
• Capacity: 2.4 - 2.6 ton hour at 30 meters
• Air Consumption:5.000 - 6,500 liters minutes
• Batch weight: 70 liters
