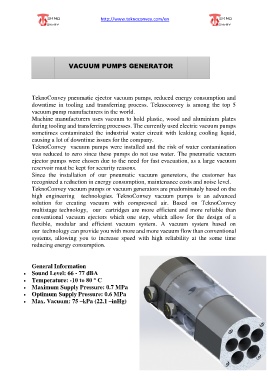

Page 19 - TEKNOCONVEY GENERAL PRODUCT CATALOG

http://www.teknoconvey.com/en

VACUUM PUMPS GENERATOR

TeknoConvey pneumatic ejector vacuum pumps, reduced energy consumption and
downtime in tooling and transferring process. Teknoconvey is among the top 5
vacuum pump manufacturers in the world.
Machine manufacturers uses vacuum to hold plastic, wood and aluminium plates
during tooling and transferring processes. The currently used electric vacuum pumps
sometimes contaminated the industrial water circuit with leaking cooling liquid,
causing a lot of downtime issues for the company.
TeknoConvey vacuum pumps were installed and the risk of water contamination
was reduced to zero since these pumps do not use water. The pneumatic vacuum
ejector pumps were chosen due to the need for fast evacuation, as a large vacuum
reservoir must be kept for security reasons.
Since the installation of our pneumatic vacuum generetors, the customer has
recognized a reduction in energy consumption, maintenance costs and noise level.
TeknoConvey vacuum pumps or vacuum generators are predominately based on the
high engineering technologies. TeknoConvey vacuum pumps is an advanced
solution for creating vacuum with compressed air. Based on TeknoConvey
multistage technology, our cartridges are more efficient and more reliable than
conventional vacuum ejectors which one step, which allow for the design of a
flexible, modular and efficient vacuum system. A vacuum system based on
our technology can provide you with more and more vacuum flow than conventional
systems, allowing you to increase speed with high reliability at the some time
reducing energy consumption.

General Information
 Sound Level: 66 - 77 dBA
 Temperature: -10 to 80 ° C
 Maximum Supply Pressure: 0.7 MPa
 Optimum Supply Pressure: 0.6 MPa
 Max. Vacuum: 75 –kPa (22.1 –inHg)
