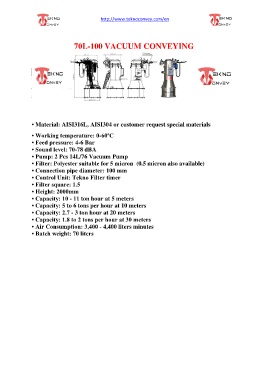

70L-100 VACUUM CONVEYING

• Material: AISI316L, AISI304 or customer request special materials

• Working temperature: 0-60ºC
• Feed pressure: 4-6 Bar
• Sound level: 70-78 dBA
• Pump: 2 Pcs 14L/76 Vacuum Pump
• Filter: Polyester suitable for 5 micron (0.5 micron also available)
• Connection pipe diameter: 100 mm
• Control Unit: Tekno Filter timer
• Filter square: 1.5
• Height: 2000mm
• Capacity: 10 - 11 ton hour at 5 meters
• Capacity: 5 to 6 tons per hour at 10 meters
• Capacity: 2.7 - 3 ton hour at 20 meters
• Capacity: 1.8 to 2 tons per hour at 30 meters
• Air Consumption: 3,400 - 4,400 liters minutes
• Batch weight: 70 liters
