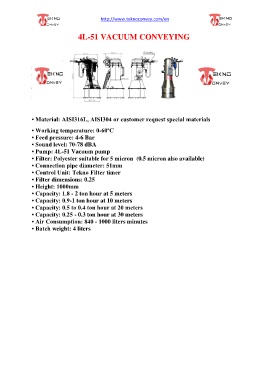

Page 13 - TEKNOCONVEY GENERAL PRODUCT CATALOG

http://www.teknoconvey.com/en

4L-51 VACUUM CONVEYING

• Material: AISI316L, AISI304 or customer request special materials

• Working temperature: 0-60ºC
• Feed pressure: 4-6 Bar
• Sound level: 70-78 dBA
• Pump: 4L-51 Vacuum pump
• Filter: Polyester suitable for 5 micron (0.5 micron also available)
• Connection pipe diameter: 51mm
• Control Unit: Tekno Filter timer
• Filter dimensions: 0.25
• Height: 1000mm
• Capacity: 1.8 - 2 ton hour at 5 meters
• Capacity: 0.9-1 ton hour at 10 meters
• Capacity: 0.5 to 0.4 ton hour at 20 meters
• Capacity: 0.25 - 0.3 ton hour at 30 meters
• Air Consumption: 840 - 1000 liters minutes
• Batch weight: 4 liters
