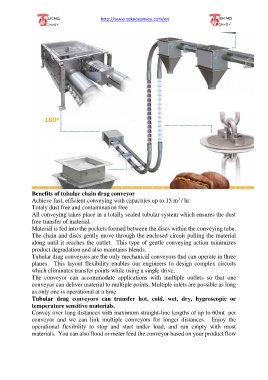

Benefits of tubular chain drag conveyor
Achieve fast, efficient conveying with capacities up to 15 m / hr.
3
Totaly dust free and contamination free
All conveying takes place in a totally sealed tubular system which ensures the dust
free transfer of material.
Material is fed into the pockets formed between the discs within the conveying tube.
The chain and discs gently move through the enclosed circuit pulling the material
along until it reaches the outlet. This type of gentle conveying action minimizes
product degradation and also maintains blends.
Tubular drag conveyors are the only mechanical conveyors that can operate in three
planes. This layout flexibility enables our engineers to design complex circuits
which eliminates transfer points while using a single drive.
The conveyor can accommodate applications with multiple outlets so that one
conveyor can deliver material to multiple points. Multiple inlets are possible as long
as only one is operational at a time.
Tubular drag conveyors can transfer hot, cold, wet, dry, hygroscopic or
temperature sensitive materials.
Convey over long distances with maximum straight-line lengths of up to 60mt per
conveyor and we can link multiple conveyors for longer distances. Enjoy the
operational flexibility to stop and start under load, and run empty with most
materials. You can also flood or meter feed the conveyor based on your product flow
