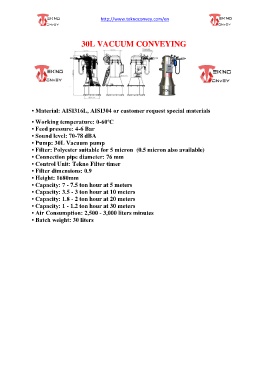

Page 16 - TEKNOCONVEY GENERAL PRODUCT CATALOG

http://www.teknoconvey.com/en

30L VACUUM CONVEYING

• Material: AISI316L, AISI304 or customer request special materials

• Working temperature: 0-60ºC
• Feed pressure: 4-6 Bar
• Sound level: 70-78 dBA
• Pump: 30L Vacuum pump
• Filter: Polyester suitable for 5 micron (0.5 micron also available)
• Connection pipe diameter: 76 mm
• Control Unit: Tekno Filter timer
• Filter dimensions: 0.9
• Height: 1680mm
• Capacity: 7 - 7.5 ton hour at 5 meters
• Capacity: 3.5 - 3 ton hour at 10 meters
• Capacity: 1.8 - 2 ton hour at 20 meters
• Capacity: 1 - 1.2 ton hour at 30 meters
• Air Consumption: 2,500 - 3,000 liters minutes
• Batch weight: 30 liters
