PLASTIC INDUSTRY PNEUMATIC CONVEYING
Pneumatic conveying systems are utilized for transport from one to other places; plastics, pvc, calcite and other raw materials. Pneumatic conveying systems are being used more intensively every day in plastic Industies.
TeknoConvey for the plastic industries;
Filling and loading Systems of raw materials such as powder and granule
Mixer feeding systems
Tank filling systems
Big bag filling unloading systems
Truck loading and unloading systems
Hopper and bunker filling systems
Mixer unloading system
Silo feed systems
Mixer loading system
Raw Material discharge systems
Transportation of raw materials with sacks and big bags
Silo transport systems
Transportation of material from the big bag and jumbo bag

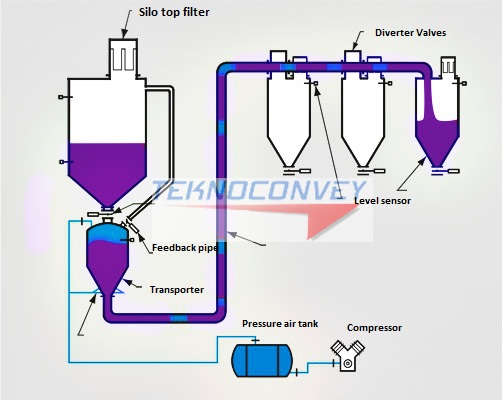

To describe dense phase conveying
in a few words: powder and granules pneumatic conveying
is the simplest way to transport dry bulk materials by using a low cost efficient equipment. The system of a pneumatic conveying system is simple consists of a pressure vessel that pumps the materials (powders, granules or other dry bulk materials) via closed horizontal or vertical pipelines by using compressed air to use low velocity, meaning a less wear of the pipelines and your pruducts.
All industry application, TeknoConvey will be best conveying partner with you for every step of your project. From engineering to installation for a complete solution for pneumatic danse phase transportations. Providing best engineered and after sells support services for your factory’s for your specific pneumatic bulk material handling.
Dense phase pressure conveying systems use compressed air at above 1 Barg (0.5 - 0.8 possible dependent on powder and convey line) to push materials from a pressure vessel, transfer unit or pressure pot or vessel through a pipeline to a destination where the air and product are separated by simple small fitler not as lean phase pneumatic conveying system need’s.
We has big experience in conveying just about every product, all our customer can rest assured that their bulk material conveying system will provide ideal performance in their request.
Some materials that are not suitable for pneumatic conveying with large particle size, with high bulk density, and the extremely sticky materials, since they tend to build a coating on material contact surfaces and can eventually block the conveying line. It is very important that particles are fine enough and without big lumps the materials must be 90% smaller than 1mm for effective pneumatic conveying , and theconveying materials moisture must be lower than 5-4%.

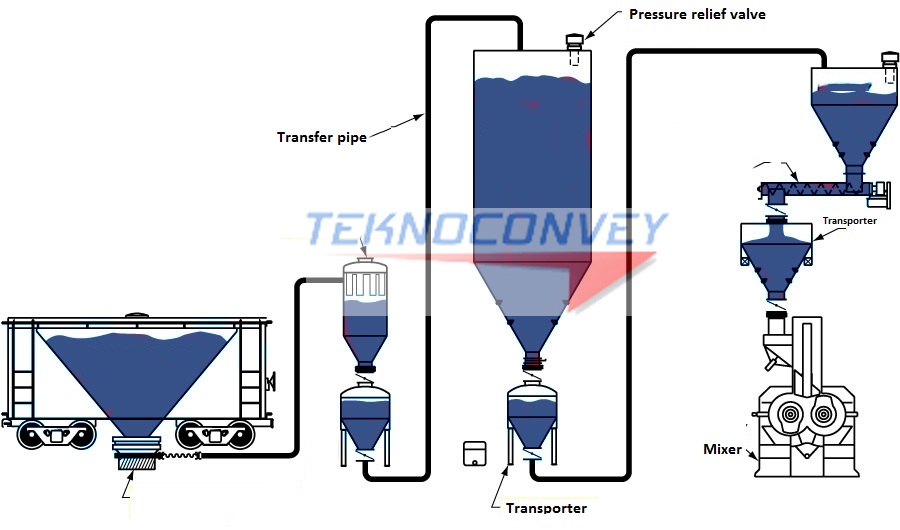

Pneumatic Dense Phase Conveying in Plastic Industry
Grount handled, bulk bag unloading, weighed, batched, mixed bulk materials.
Pneumatic conveying for rail unloading cement .
Flexible and simple and installation can route allmost everywhere in conveying lines
Free dust process
Low maintenance just a few moving parts
Can include automated process
Fast and low cost installation
Can be designed to any rate
Cleaner handling space
