PNEUMATIC CONVEYING SYSTEM FOR RUBBER INDUSTRY APLICATION
To describe dense phase conveying in a few words: pneumatic conveying is the simplest way to transport dry bulk materials by using a low cost efficient equipment. The system of a pneumatic conveying system is simple consists of a pressure vessel that pumps the materials (powders, granules or other dry bulk materials) via closed horizontal or vertical pipelines by using compressed air to use low velocity, meaning a less wear of the pipelines and your pruducts.
All industry application, TeknoConvey will be best conveying partner with you for every step of your project. From engineering to installation for a complete solution for pneumatic danse phase transportations. Providing best engineered and after sells support services for your factory’s for your specific pneumatic bulk material handling.
Dense phase pressure conveying systems use compressed air at above 1 Barg (0.5 - 0.8 possible dependent on powder and convey line) to push materials from a pressure vessel, transfer unit or pressure pot or vessel through a pipeline to a destination where the air and product are separated by simple small fitler not as lean phase pneumatic conveying system need’s.
Some materials that are not suitable for pneumatic conveying with large particle size, with high bulk density, and the extremely sticky materials, since they tend to build a coating on material contact surfaces and can eventually block the conveying line. It is very important that particles are fine enough and without big lumps the materials must be 90% smaller than 1mm for effective pneumatic conveying , and theconveying materials moisture must be lower than 5-4%.
We has big experience in conveying just about every product, all our customer can rest assured that their bulk material conveying system will provide ideal performance in their request.

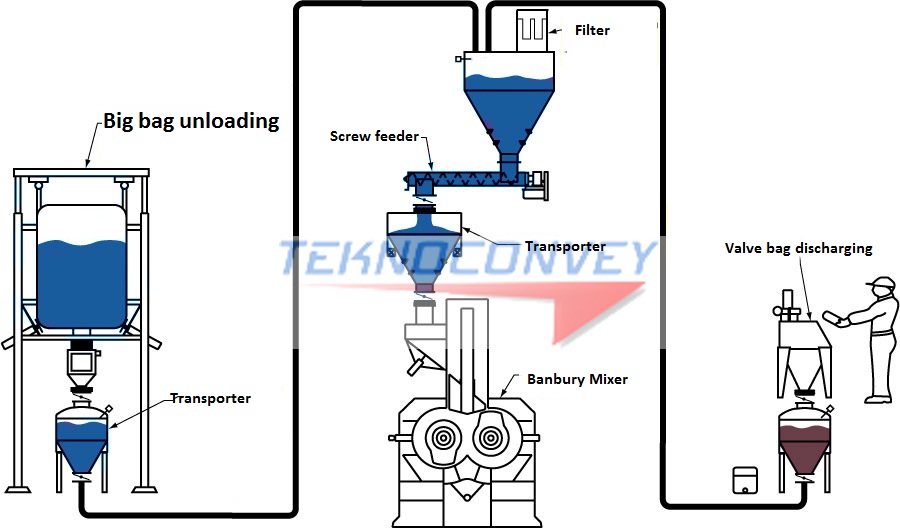

Pneumatic Dense Phase for grount handled, bulk bag unloading, weighed, batched, mixed bulk materials.
Flexible and simple and installation can route allmost everywhere in conveying lines
Free dust process
Max low degradation less than 5-6%
Low maintenance just a few moving parts
Can include automated process
Fast and low cost installation
Can be designed to any rate
Cleaner handling space
