CEMENT BULDING MATERIAL CONVEYING
Cement and building material conveying
is a single vessel, dense phase pneumatic conveying
.The system is designed to produce high material to air ratios and low conveying velocities for cement conveying
. TCement and building material comprises a small pressure vessel fitted with the unique valve vessel filling. The butterfly valve is the only moving part in the system and moves through 90° to a fully open unrestricted filling position. When closed,the valve is pneumatically sealed. Cement conveying
continuously cycles as often as necessary to meet the specified conveying rate. A pressure sensor determines when the cycle is complete and the air supply is turned off. The conveyor is then ready for re filling and a new conveying cycle proceeds. TeknoConvey developed a good proven group of technologies for handling cement and other building products with the objective of achieving the lowest possible operating cost. Operating costs can be classified into two main groups; energy cost and maintenance costs. Best managed line loading to fill the pipeline with cement without relying on fluidisation to move the material as a mass along the pipe at a lower transfer velocity makes all the difference to power cost and equipment wear.
To describe dense phase conveying
in a few words: pneumatic conveying
is the simplest way to transport dry bulk materials by using a low cost efficient equipment. The system of a pneumatic conveying system is simple consists of a pressure vessel that pumps the materials (powders, granules or other dry bulk materials) via closed horizontal or vertical pipelines by using compressed air to use low velocity, meaning a less wear of the pipelines and your pruducts.
All industry application, TeknoConvey will be best conveying partner with you for every step of your project. From engineering to installation for a complete solution for pneumatic danse phase transportations. Providing best engineered and after sells support services for your factory’s for your specific pneumatic bulk material handling.

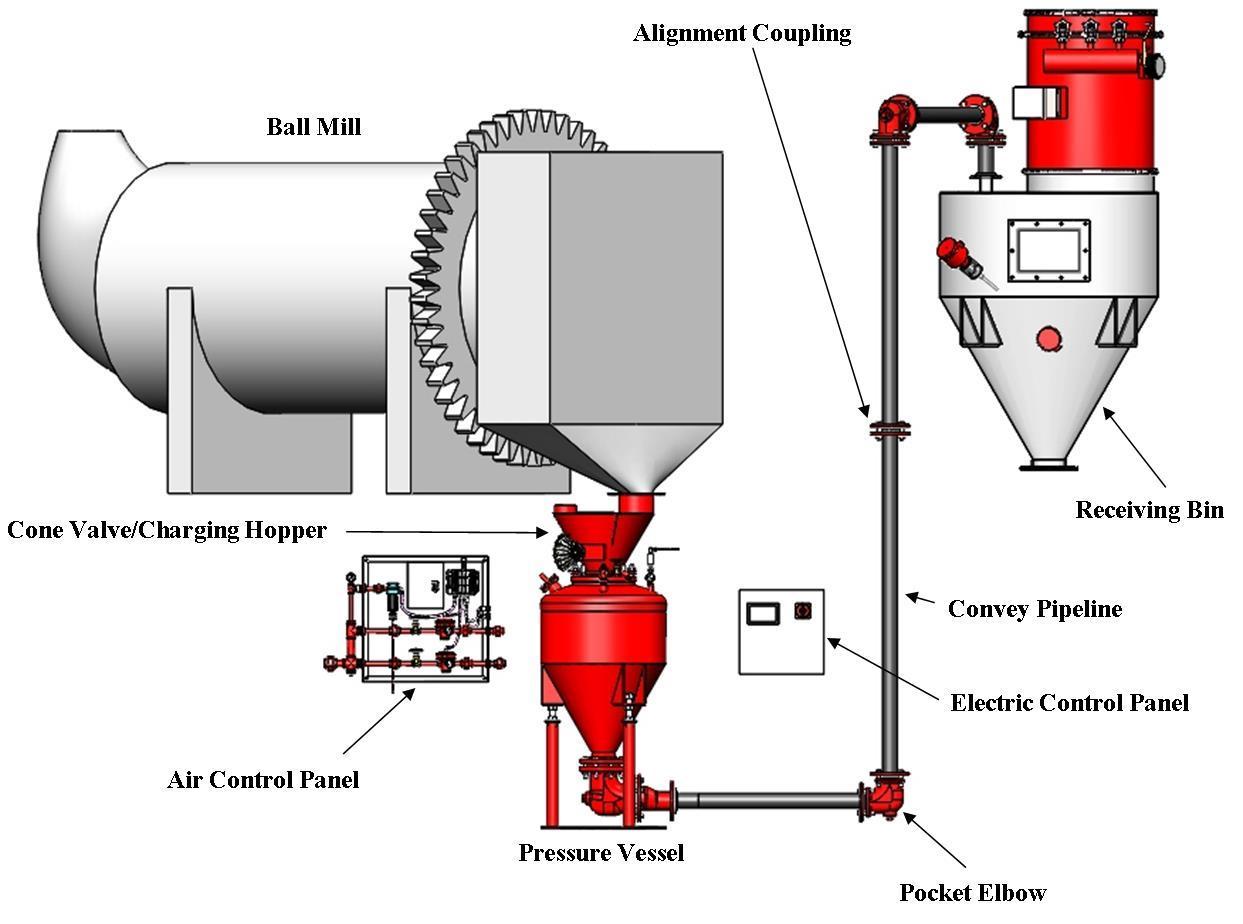

Dense phase conveying systems use compressed air at above 1 Barg (0.5 - 0.8 possible dependent on powder and convey line) to push materials from a pressure vessel, transfer unit or pressure pot or vessel through a pipeline to a destination where the air and product are separated by simple small fitler not as lean phase pneumatic conveying system need’s.
We has big experience in conveying just about every product, all our customer can rest assured that their bulk material conveying system will provide ideal performance in their request.
Some materials that are not suitable for pneumatic conveying
with large particle size, with high bulk density, and the extremely sticky materials, since they tend to build a coating on material contact surfaces and can eventually block the conveying line. It is very important that particles are fine enough and without big lumps the materials must be 90% smaller than 1mm for effective pneumatic conveying , and theconveying materials moisture must be lower than 5-4%.

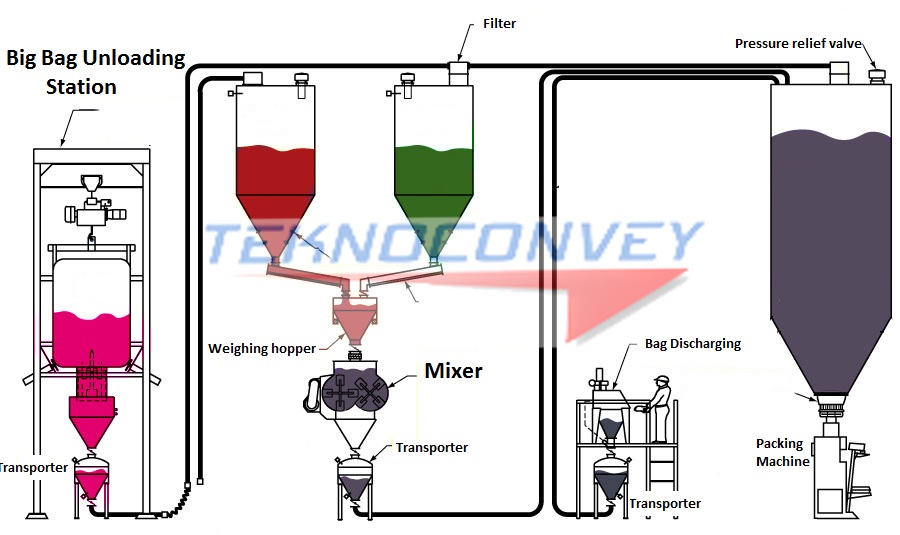

Pneumatic Dense Phase for grount handled, bulk bag unloading, weighed, batched, mixed bulk materials.
TeknoConvey produce the most efficient conveying possible by maximizing the time spent at the design pressure of your convey system. Designed to be the most efficient dense phase conveying technology for long distance, high-capacity applications
Flexible and simple and installation can route allmost everywhere in conveying lines
Free dust process
Max low degradation less than 5-6%
Low maintenance just a few moving parts
Can include automated process
Fast and low cost installation
Can be designed to any rate
Cleaner handling space
